For textile enterprises pursuing sustainable production and versatile fabric processing capabilities, our Eco Friendly jet Dyeing Machine for woven fabric is a premium solution that balances cost savings, environmental compliance and production diversity. Differentiated from conventional single-structure dyeing equipment, this machine is assembled with three specialized functional fabric storage tanks, realizing a perfect complement of structural performance and functional advantages.
A key pain point plaguing traditional textile dyeing equipment is the inability to balance fabric applicability and resource conservation. Standard O-shaped dyeing tanks excel in low-liquid dyeing processes with minimal material waste, but their rigid structure restricts them to only a small range of woven fabrics, limiting production flexibility. Meanwhile, ordinary L-shaped dyeing equipment boasts strong adaptability for various woven fabric specifications, yet its high water consumption leads to high operational costs and non-compliance with international eco-production requirements.
Featuring a hybrid optimized structure, our new-generation overflow dyeing machine solves the industry's long-standing structural dilemma. It inherits the low liquor ratio and cost-effective performance of O-type dye tanks to reduce water, electricity and dye usage, while retaining the ultra-wide fabric compatibility of L-shaped designs to adapt to all types of woven fabric dyeing processes. This innovative eco-friendly dyeing equipment helps textile manufacturers achieve green, low-carbon, high-flexibility and low-cost production, fully meeting the diverse processing needs of modern textile industrial production.
Working Principle
High speed circulating dye liquor sprays out from the optimized structure jet nozzle and generates powerful fluid kinetic force to drive rope form woven fabric for endless cyclic movement. Violent turbulent flow enables full scale contact between dye solution and fabric yarns. The whole closed loop circulation system prevents heat loss and liquor waste.
Feature

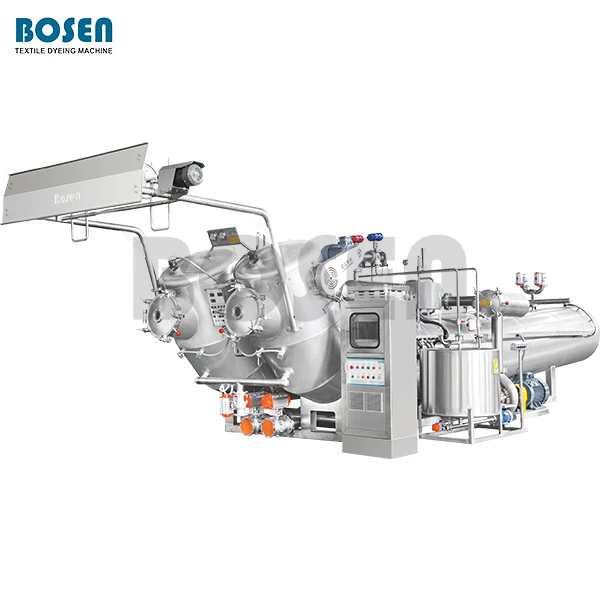

Built with a professional downward-travel slide-type single-barrel structure with dual-cloth working design, our Eco Friendly jet Dyeing Machine for woven fabric is engineered to solve the pain points of low capacity, high energy consumption, and single fabric applicability of conventional textile dyeing equipment. With a large Φ1108 diameter single barrel and integrated double cloth storage tanks and dual-nozzle configuration, the machine realizes a substantial increase in fabric loading capacity and batch output, greatly improving operational efficiency and accelerating capital return for textile production lines.
One of the biggest highlights of this equipment is its strong adaptability to various fabric types through flexible dual-pressure nozzle systems. The low-pressure overflow nozzle mode with 0.5~1.0KG/cm² working pressure provides gentle low-tension dyeing, which is ideal for stretch fabrics and delicate materials that are prone to deformation under high tension. Meanwhile, the high-pressure jet nozzle mode with a peak pressure of 3KG/cm² delivers powerful dye liquor impact, fully meeting the processing needs of high-density woven fabrics and ultra-fine fiber fabrics. The matched double anti-rotation nozzle structure guarantees stable fabric operation without deviation or wrinkling.
This high-efficiency dyeing machine leads the industry in green production with an ultra-low 1:5 to 1:6 liquor ratio. The optimized downhill wave plate and cloth storage tank structural design cuts down redundant liquid volume during dyeing processing, sharply reducing water usage, steam consumption, and auxiliary agent waste throughout the dyeing procedure. It is a cost-effective and environmentally friendly processing solution that conforms to global sustainable textile production standards.
The unique single-barrel double dyeing tank layout revolutionizes the traditional dyeing circulation logic. By accelerating internal fabric circulation and increasing dye liquor mixing frequency, the machine realizes full-process fast feeding, rapid dyeing, and efficient two-way discharging. The optimized circulation system not only greatly improves production efficiency and batch throughput but also ensures more uniform dye distribution, effectively avoiding color difference, uneven dyeing and fabric defects, delivering high-quality finished textile products for mass industrial production.
