Room Temperature Jig Dyeing Machine

Send Inquiry

Description

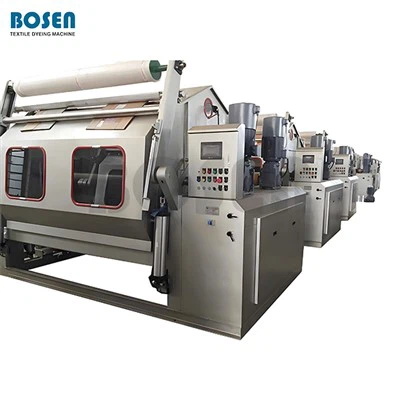

SMD room temperature jig dyeing machine are available in sizes ranging from compact sample dye jiggers to high-capacity industrial units, perfectly suited for small-batch production with multiple product varieties. Key models are manufactured with cloth roll diameters of Φ150mm, Φ600mm, Φ1200mm, Φ1400mm, and Φ1500mm to accommodate different production needs. The machine's exterior is designed with a sloped top structure and a self-locking door frame, which is pneumatically opened and closed via two lifting cylinders. The top cover heating system maintains a stable temperature, prevents liquid dripping, and includes a safety feature that halts heating automatically upon door opening. Two heating options are offered for the dye tank: direct steam heating and indirect steam heating. The ambient temperature model can also be equipped with an active cloth roll roller staggering function and an external heat exchanger, supporting the integration of various functional modules as per process demands.

Key Components

1. Main System: Includes the control system (touchscreen or button panel), drive motor, and heating bath (water bath or oil bath).

2. Rotary Staining Rack: A rotating device that can accommodate multiple staining cups; the speed is adjustable.

3. Staining Cups: Corrosion-resistant, well-sealed sample containers, typically made of stainless steel or special plastics, with capacities ranging from tens to hundreds of milliliters.

4. Temperature Control System: A high-precision PID temperature controller to ensure uniform and stable temperature within the bath.

Safety Devices: Overheat protection, leakage protection, and a safety lock on the door.

Product Parameters

Model	SMD400			SMD600			SMD700
Unit	mm	mm	mm	mm	mm	mm	mm
Roller width	2000	3200	3400	2000	3200	3400	2000
A	800	800	800	1200	1200	1200	1400
B	2210	3410	3610	2210	3410	3610	2210
C	1600	1600	1600	2300	2300	2300	2700
D	3200	3200	3200	4000	4000	4000	4300
E	3300	4500	4700	3370	4570	4770	3470
F	4450	5650	5850	4270	5470	5670	4370
G	1800	1800	1800	2400	2400	2400	2500
H	2400	2400	2400	2700	2700	2700	2900

201

Feature

Control Panel

Equipped with an intuitive touchscreen interface, the control system is simple to handle. All working processes and real-time running states are clearly visible on the screen for easy monitoring, and the program operates fully automatically as preconfigured.

Drive Equipment

The cloth speed is controlled with pinpoint accuracy through a vector control drive method, and a non-blocking dynamic torque control mechanism ensures that tension remains uniform and unchanging at all times.
