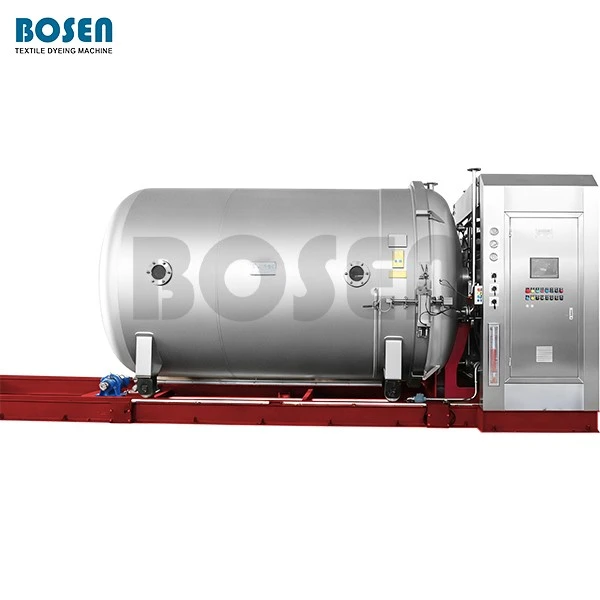

The SGR168B hthp textile jigger machine combines small-batch and high-capacity production, offering superior performance. It provides four roller diameter options from φ350mm to φ1400mm to meet diverse production needs. The machine features a high-temperature, high-pressure outer cylinder design, operating at 3 BAR and reaching a maximum temperature of 140℃. It is equipped with dual φ150mm observation windows and safety switches to ensure safe operation. Its functionality rivals that of a normal-temperature dyeing machine, with an external high-efficiency heat exchanger enabling rapid heating and cooling. The feed cylinder is equipped with a simulated liquid level gauge for real-time liquid replenishment and precise control of the liquor ratio. Automatic condensate drainage and a separate inner and outer cylinder design ensure stable operation-the inner cylinder is fixed, while the outer cylinder is driven by a linear gear reducer and moves smoothly along dual guide rails, improving dyeing efficiency and reliability.
Technical parameters
|
Maximum Fabric Roll Diameter |
800mm - 1500mm (commonly 800/1000/1200/1400mm) |
|
Main Roller Diameter |
245mm - 400mm |
|
Mechanical Speed |
0-130 meters/minute |
|
Tension Range |
0-90 kg |
|
Temperature Control Range |
0-135°C |
|
Liquor Ratio |
Minimum 1:3 |
|
Capacity |
300kg - 2000kg |
|
Main Motor Power |
5.5-15 kW |
|
Circulation Pump Power |
2.2 kW |
System Configuration
1. Automatic Feeding System: Simulated curve feeding, segmented batch feeding, large/small valve (fast/slow) feeding
2. Liquid Level Detection: Automatic liquid level detection and control system for medicine tanks
3. Circulation Pump: Powerful mixing circulation pump for rapid material dissolution
4. Automatic Cleaning: Automatic pipeline cleaning function
5. Heat Exchanger: External high-efficiency heat exchanger
6. Safety Devices: Pressure vessel safety switch, operator-side observation window
7. Variable Frequency Drive: Variable frequency control pump motor, variable frequency adjustment unwinding device
8. Automatic seam detection device
Feature
- Adopts advanced foreign technology, equipped with AC frequency conversion drive, PLC control, and data communication system.
- Achieves true and direct fabric tension and linear speed detection, supporting closed-loop precise control.
-
Equipped with a touch screen operating system, providing excellent human-machine interaction and dialogue functions.
-
Features automatic temperature control, automatic steering, automatic track recording, automatic reversing, automatic stopping, and fabric manipulation functions.
-
The entire machine is equipped with a dye liquor circulation system to ensure uniform dye liquor temperature and stable dyeing results; the circulation system has a built-in filter to effectively prevent pipeline blockage.
-
Equipped with auxiliary devices such as top cover lighting and fault alarm lights, ensuring safe operation and convenient maintenance.
-
Drain valves, exhaust pipes, and fabric delivery crossarms are all pneumatically controlled.
-
Key components of the main unit are all imported, ensuring stable and reliable equipment operation.
-
Achieves fully automated control of the production process, supporting multiple process combinations.
-
Flexible and convenient lid opening operation; the cylinder slides smoothly on the guide rails.
Advantages
High Temperature and High Pressure Dyeing
Operating temperatures can reach approximately 135 °C or higher, significantly higher than conventional atmospheric dyeing machines.
High temperature and high pressure allow dyes to penetrate fibers more effectively, improving color fastness, color saturation, and uniformity.
Open Width Control for Excellent Wrinkle Resistance
Fabric tension is controlled even when fully open.
Advanced tension control systems reduce permanent creases and rope marks.
Automated Control
Many HTHP jiggers are equipped with PLC control systems for automatic temperature, speed, direction, circulation, and process control, improving repeatability and production efficiency.
Uniform Dyeing and Low Liquor Ratio
A well-designed dye bath and circulation system maintains uniform dye liquor temperature and concentration.
A low liquor ratio means greater savings in dye and water resources.
Applications
Synthetic Fiber Dyeing:
The ht jigger provides efficient and uniform dyeing results for synthetic fibers such as polyester and nylon.
01
Cotton and Blended Fabrics
It can be used for cotton fabrics and blends of cotton with other fibers, especially those requiring high-temperature dyeing.
02
Dark Dyeing
This machine is capable of dyeing dark colors such as dark blue and deep red.
03
Post-Processing
In addition to conventional dyeing, the HT Jigger is also commonly used in post-processing, such as softening fabrics or adding additional properties (e.g., stain resistance and UV resistance).
04
