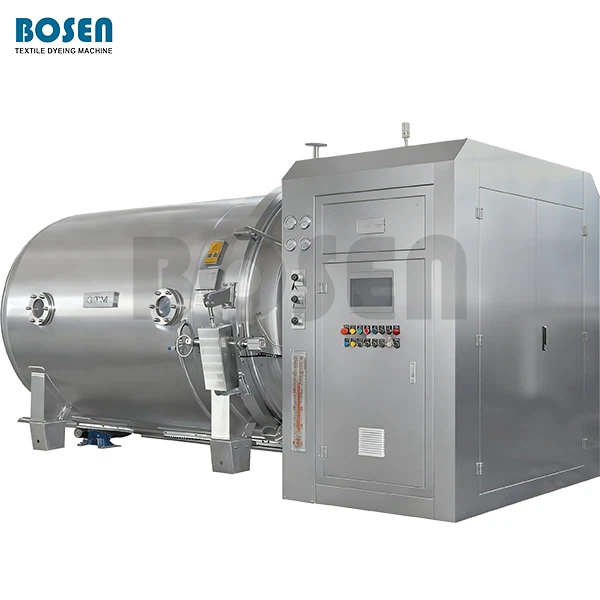

The SGR nylon fabric jigger dyeing machine delivers outstanding performance for both small-batch production and large-capacity dyeing applications. It is available in four standard models with cloth roll diameters of φ680mm, φ800mm, φ1000mm, and φ1200mm to meet diverse production requirements.
Featuring a heavy-duty high-temperature and high-pressure cylinder body, this jigger dyeing machine operates at a working pressure of 3BAR and a maximum working temperature of 140℃. Two φ150mm observation windows are installed on the operation side for real-time process monitoring, and the pressure vessel is equipped with a safety interlock switch to ensure safe operation.
The nylon fabric jigger dyeing machine supports extended functions similar to normal temperature jigger dyeing machines. Condensed water is collected at the bottom of the cylinder and automatically discharged through a dedicated automatic valve system.
Working Principle
1. Loading: The fabric is wound onto one of the two main rollers (A or B).
2. Dyeing Cycle: The machine starts, and the moving roller unwinds the fabric. The fabric passes through the dye bath containing the dye solution and is then rewound onto the other roller.
3. Reversal: After the fabric has been completely transferred to the other roller, the machine automatically reverses its direction. The fabric passes through the dye bath again, ensuring uniform dye penetration.
4. Heating: During this process, the dye bath is heated (directly by steam or indirectly by a heat exchanger) to the required temperature (up to 135-140°C for high-temperature models) to open the nylon fibers, allowing dye molecules to diffuse and fix.
Product Equipment
Main Structural Features
1. Frame and Dyeing Vat: 304/316L stainless steel, resistant to acid and alkali corrosion.
2. Main Roller: Large diameter (φ800–900mm), hard chrome plated, mirror polished.
3. Drive System: Dual frequency converters (VVVF) for precise speed/tension control.
4. Control System: PLC + color touchscreen (HMI) for fully automatic control.
5. Tension Control: Real-time closed-loop detection and adjustment.
6. Heating/Cooling: Rapid steam heating for efficient heat exchange.
7. Safety Devices: Pressure relief valve, over-temperature and over-pressure interlock devices.
Product Features
This nylon fabric jigger dyeing machine adopts advanced AC frequency conversion drive, PLC control and data communication technology. It features real direct fabric tension and line speed detection with closed-loop control, coupled with a user-friendly touch screen HMI for intuitive operation. Equipped with automatic temperature control, automatic turning, automatic path recording, automatic reversing, automatic stop and cloth swinging functions, it ensures stable and efficient dyeing production.
The integrated dye liquor circulation system maintains uniform temperature and dye distribution, while a built-in filter prevents pipeline blockage. Auxiliary devices including top cover lighting and fault alarm lights enhance operational safety and ease of maintenance. Drain valves, exhaust chimneys and cloth discharge cross arms are pneumatically controlled.
Key components are imported for reliable and consistent performance. The nylon fabric jigger dyeing machine supports fully automatic process control with multiple programmable process combinations, and uses a horizontal door type with upper and lower screw opening for convenient operation.
