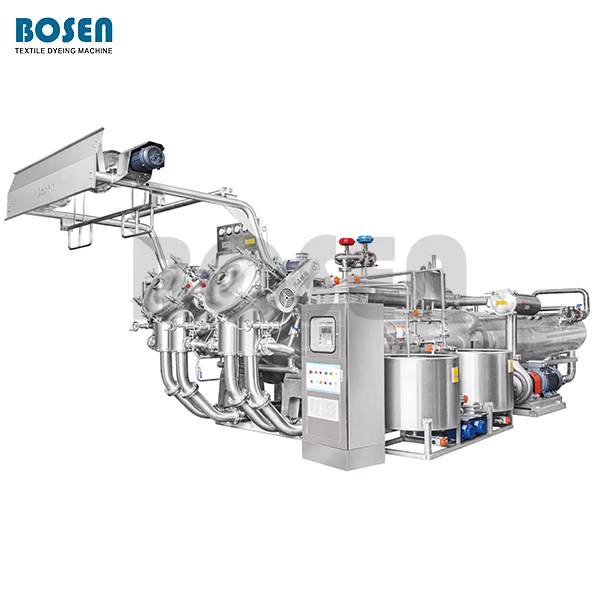

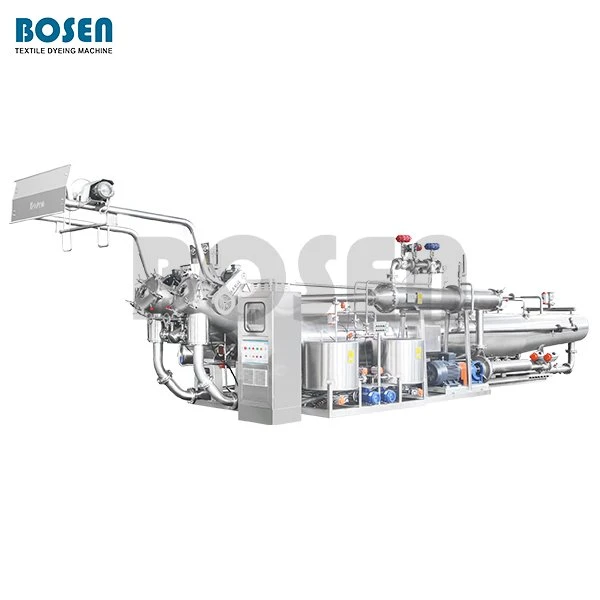

Instead of dragging cloth against a wall, this Low Tension Overflow Dyeing System Machine lets fabric float inside liquid-filled ducts - so there is almost no friction, tension or lint. The result is a clean, high-surface-finish dyeing at 150-600 m/min, ideal for mid-to-large batches.
Working Principle
Rope-form fabric is drawn into the filled ducts and carried along by the liquor flow, touching the wall hardly at all. Dye circulates through an external heat exchanger for tight temperature control, simulated level sensing and automatic valves hold the bath ratio, and a wave-shaped inner mesh keeps the cloth running smoothly while cutting wear and water use.
Key Features & Advantages
Floating, friction-free transport
Fabric rides the liquor, eliminating wall friction for true low tension.
Low tension, low lint
150-600 m/min with far less lint and pilling for a better surface.
Wave-shaped inner mesh
Less mechanical wear, smoother running and lower water use.
Ultra-low liquor ratio
1:2-3 bath cuts water, steam and chemical spend dramatically.
High temperature & pressure
Up to 140 DegC / 4 kg/cm2, heating 20 DegC/min, cooling 15 DegC/min.
Smart automatic control
Touchscreen, auto temperature and ratio, with 3 patented technologies.
Technical Specifications
|
Models / Capacity |
PSA-1-300 (200-300 kg) / PSA-2-600 (500-600 kg) / PSA-4-1200 (1000-1200 kg) |
|
Fabric Type |
Cotton, linen, viscose, polyester/synthetic, blends, nylon elastic, light and stretch fabrics |
|
Max. Temperature / Pressure |
140 DegC / 4 kg/cm2 |
|
Fabric Speed |
150 - 600 m/min |
|
Liquor Ratio |
1 : 2 - 3 (ultra-low) |
|
Heating / Cooling Rate |
20 DegC/min (20-130 DegC) / 15 DegC/min (130-80 DegC) |
|
Main Pump |
30 HP (22 kW) / 50 HP (37 kW) / 74 HP (55 kW) |
|
Structure |
Liquid-filled floating ducts, wave-shaped inner mesh, external heat exchanger, simulated level measurement |
|
Patents |
ZL201721278423.5, ZL201721267009.4, ZL201721267166.5 |
Customer Benefits
Excellent fabric quality - Zero-friction low-tension dyeing with high surface finish and low lint.
High productivity - 150-600 m/min fabric speed with large-capacity chambers.
Energy & water savings - Ultra-low liquor ratio and wave inner mesh cut consumption.
Automated operation - Touchscreen control and automatic dosing reduce labour and ensure consistency.
