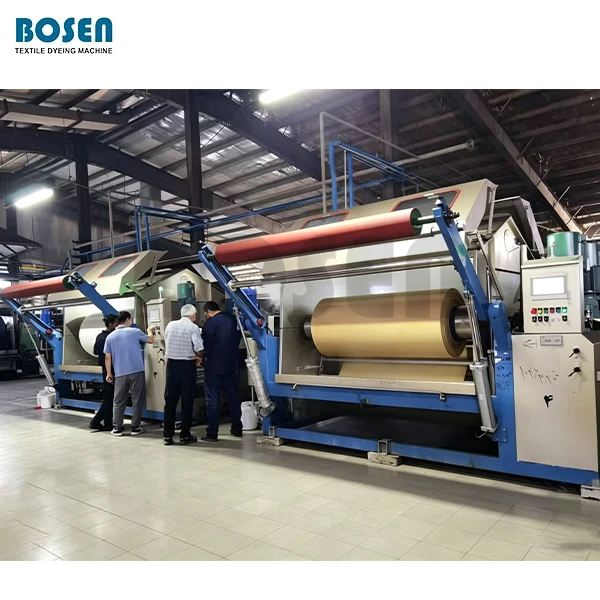

Jigger Dyeing Machine For Linen Fabric

Send Inquiry

Description

For small-batch, multi-variety dyeing needs, the SMD jigger dyeing machine for linen fabric offers a complete solution from small prototypes to large-capacity machines, covering five fabric roll diameter levels from Φ150mm to Φ1500mm. The equipment features a sloping roof structure with automatic door closing and pneumatic door opening and closing via dual lifting cylinders. The top heating chamber maintains a constant temperature, is leak-proof, and automatically shuts off heating upon door opening to ensure operational safety. The dyeing tank supports both direct and indirect steam heating modes. Furthermore, the standard temperature model can be equipped with an active fabric roll offset device and an external heat exchanger to meet various customized process requirements.

Product Parameters

Model	SMD400			SMD600			SMD700
Unit	mm	mm	mm	mm	mm	mm	mm
Roller width	2000	3200	3400	2000	3200	3400	2000
A	800	800	800	1200	1200	1200	1400
B	2210	3410	3610	2210	3410	3610	2210
C	1600	1600	1600	2300	2300	2300	2700
D	3200	3200	3200	4000	4000	4000	4300
E	3300	4500	4700	3370	4570	4770	3470
F	4450	5650	5850	4270	5470	5670	4370
G	1800	1800	1800	2400	2400	2400	2500
H	2400	2400	2400	2700	2700	2700	2900

201

Machine Configuration Options

1. Pneumatic automatic cloth loading/unloading frame (reduce labor for heavy linen rolls)

2. Automatic chemical dosing system (precision adding of soda ash, hydrogen peroxide, dye fixer for linen)

3. Heat recovery water circulation system (energy saving upgrade)

4. Sample small jigger machine for lab formula testing before mass linen production

5. Closed gas recovery cover (reduce workshop steam & chemical odor)

Feature

Control Panel: Equipped with a touchscreen computer for easy operation. The display screen allows users to easily understand various process flows and equipment operating status. The entire machine operates automatically according to preset programs.

Drive Equipment: The drive system uses vector control for precise control of the fabric speed; tension control employs non-blocking dynamic torque control technology to maintain consistent and uniform tension.

Advantages

High Efficiency and Energy Saving

Low liquor ratio design reduces dye consumption and maximizes heat energy utilization, meeting energy conservation and environmental protection requirements.

Uniform Dyeing

Constant tension and speed control ensure uniform dyeing throughout the fabric process, reducing color difference and end-to-end variations.

Fiber Protection

The ambient temperature and pressure model is particularly friendly to temperature-sensitive natural fibers (such as linen, cotton, and silk), maintaining the fabric's original softness and hand feel.

Easy Operation

Highly automated, the dyeing cycle, temperature, and time are controlled by a program, reducing manual intervention.

Strong Adaptability

Suitable for lightweight, medium-thick, and heavy fabrics, with a wide width range (900–3600 mm).

Multifunctionality

In addition to dyeing, it can also perform pretreatment and finishing processes such as scouring, bleaching, soaping, and washing.
